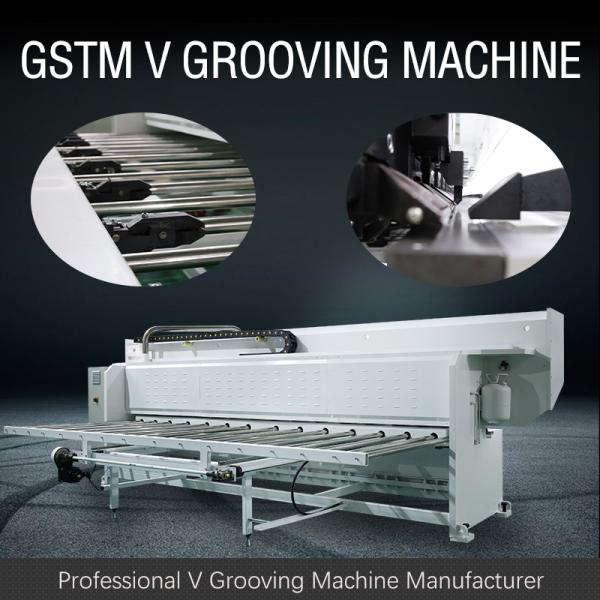

Signage Automatic V Grooving Machine For Sheet Metal Grooving Machine

Brand Name : SUBIERUI

Model Number : GSTM

Certification : ISO9001,CE

Place of Origin : Wuxi,China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 30 sets per mouth

Delivery Time : 7-40 days

Packaging Details : Waterproof packaging

Number of Cutterbars : 6 pcs; Customizable

Cooling action : Air cooling; Customizable water cooling

Processing speed : 120m/min

Controller : Touch screen

Input voltage : 380V; Customizable

Cutterbar Properties : Alloy blades or white steel blades

Contact Now

Automatic V Groover Machine for Metal Curtain Wall and Signage Manufacturing

Multiple auxiliary presser feet
The number of auxiliary presser feet is large and the distribution is scientific. Multiple auxiliary presser feet in two directions are hydraulically controlled, and the workpiece clamping is more stable and reliable.

Customization and modification of equipment
Consulting for new equipment is not the only solution when there is a need to adjust process flow, change materials or improve the utilization of existing capacity in production. Our engineers can work with you to analyze and assess the current situation of your equipment, and combine your needs and desires to develop a complete set of solutions for you, from small-scale equipment customization to equipment modification. We will work with you to develop personalized maintenance schemes for all projects according to your technical needs so as to avoid costly out-of-chapter downtime, ensure the service life of equipment and improve the value of equipment itself. Take advantage of these strengths to maximize process and investment safety. Of course, equipment manufactured by other manufacturers is no exception.
Simple and intelligent system
According to the entered inner diameter or outer diameter after bending, the system automatically calculates the slot distance when processing, and displays the two-dimensional sketch map after bending, capacity and required sheet width. Easy to operate, easy to learn and understand, reduce the demand for talents and reduce labor costs.

Name Parameter Unit
Max. Width of metal sheet 1250 mm
Max. Length of metal sheet 4000 mm
Max. thickness(Stainless steel) 6 mm
Min. Thickness of metal sheet 0.4 mm
Min.distance of the V from edge 10 mm
Max. cutting speed of X axis 120 m/min
Max .return speed of the X axis 120 m/min
Max.distance of Y axis 1250 mm
Resolution in Y1 axis 0.001 mm
Repeated positioning accuracy ±0.01 mm
Resolution in z axis 0.001 mm
Repeated positioning accuracy ±0.01 mm
Motor power X axis 5.5 kW
Y,Z1,Z2 axis 1.0
Overall dimension Length 5700 mm
Width 2350
Height 2000
